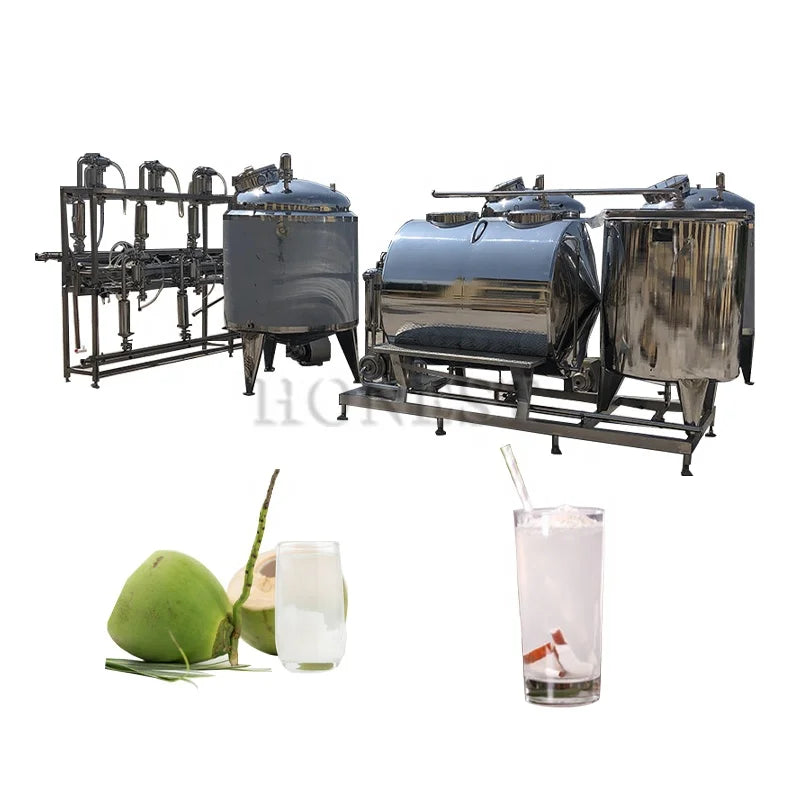

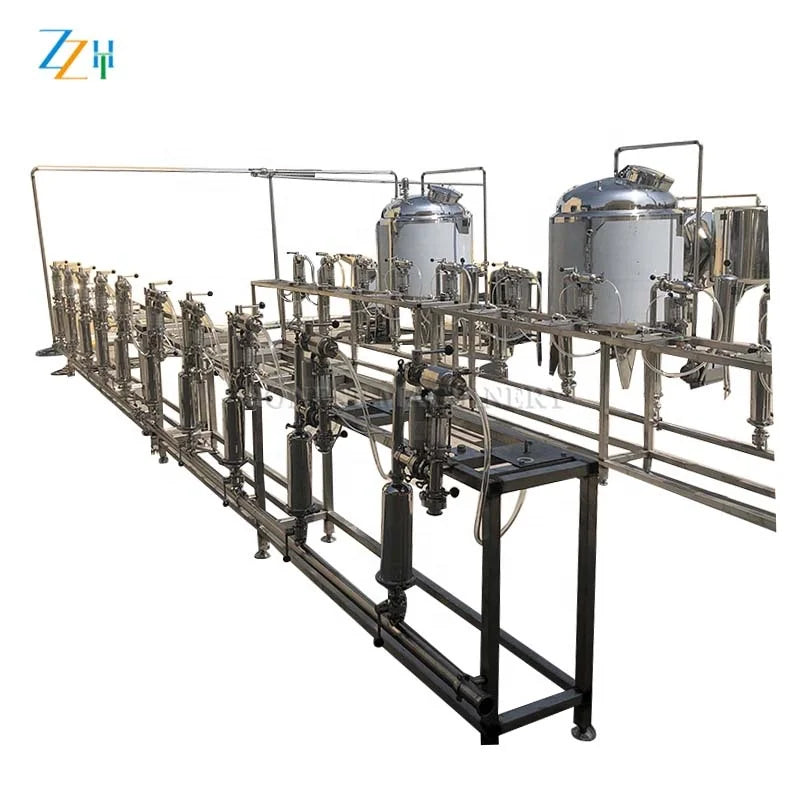

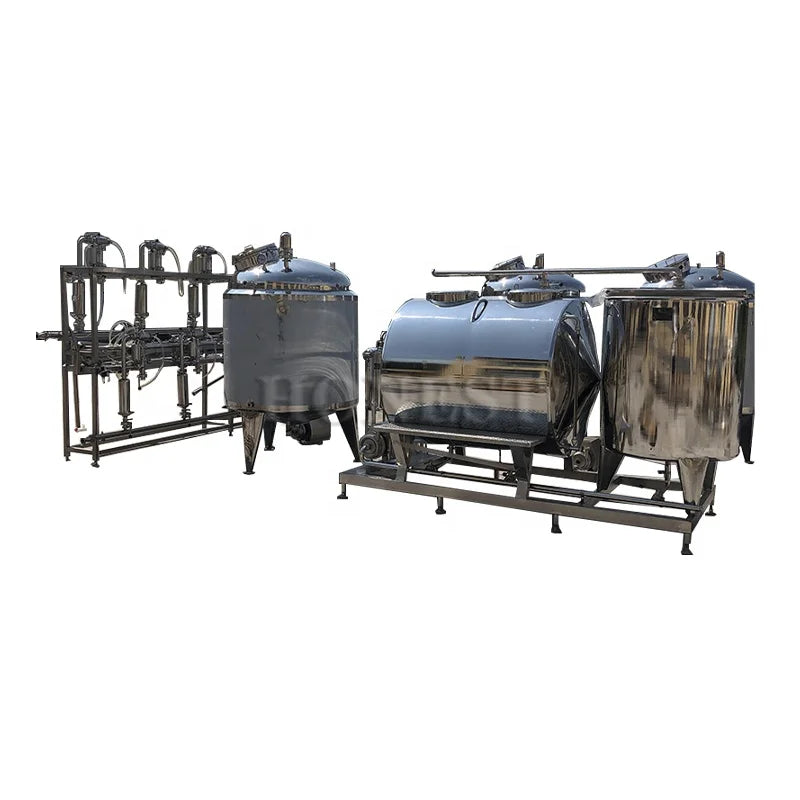

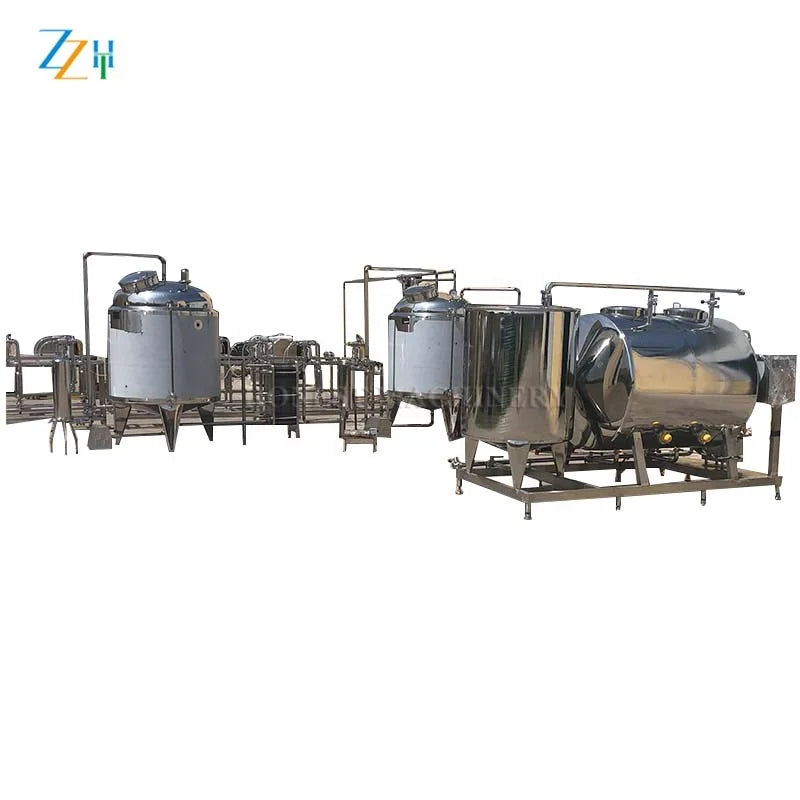

Industrial Coconut Water Machine / Coconut Water Processing Machine / Coconut Production Line

Product Description

The coconut juice extraction assembly line is a set of coconut processing equipment independently developed by our company. It is mainly used for customers who extract coconut juice and filter it for use. The extracted and filtered coconut juice can be directly filled, and the coconut shell enters the next processing step.

The coconut juice extraction assembly line mainly consists of a juice extraction system, a filtration and storage system, a vacuum negative pressure system, and a circulating cleaning system. Customers can also choose cutting and conveying equipment, as well as filling equipment, according to their own needs.

Technical Parameters

*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.

Machine Name	Quantity	Characteristic

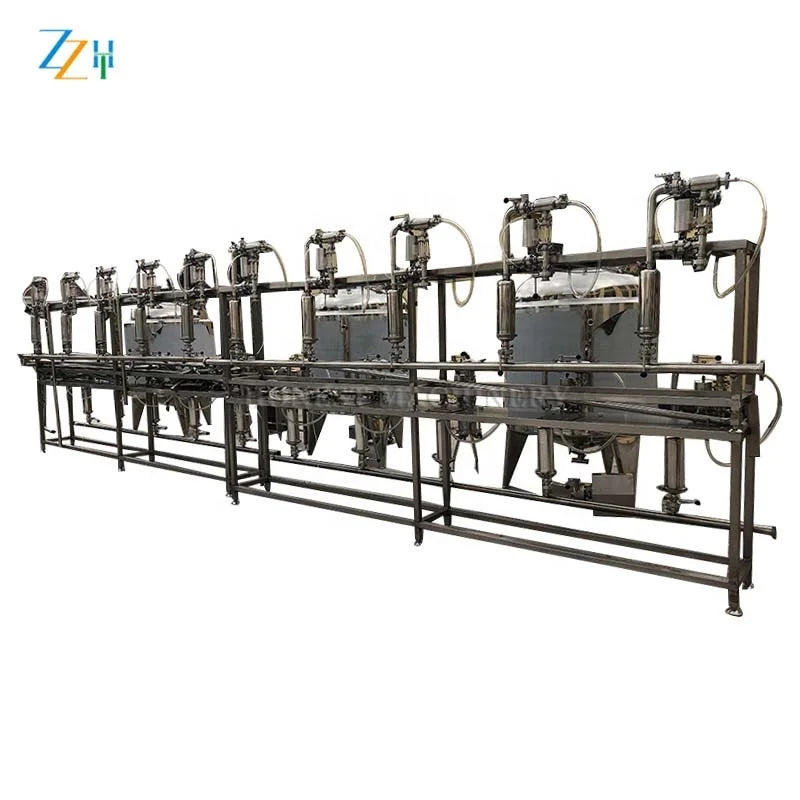

Negative pressure juicer	20 workstations	Each workstation is operated by one person, and a coconut can be individually pulled out through the window. Good juice can enter the pipeline directly, while bad juice can be intercepted and discharged directly. The bag filter is used for filtration, and the button can be pressed to operate.
Circular visualization	20Sets	Each workstation is equipped with a set of pipes for discharging bad juice during work, which is visible and pollution-free
Juicing workbench	20 workstations	Used for juice extraction operation table, with a 3mm thick square tube welded on the frame and a 2mm steel plate on the flat surface.
Cleaning machine	1Set	Mobile, the whole machine is made of 304 stainless steel, with a water barrel thickness of 2mm. It is equipped with stainless steel circulating high-pressure water for washing, and can be used to wash each station's juicer separately. The juicer can be disassembled separately for local cleaning.
Imported vacuum pump	1Set	German imported pump, brand Puxu, with a suction capacity of 200 cubic meters.

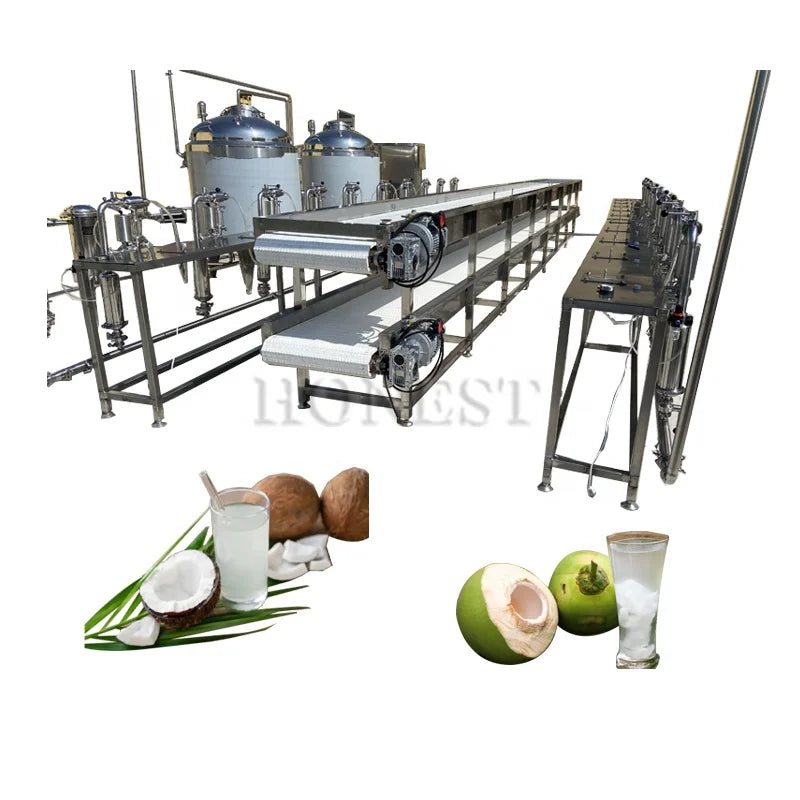

conveyor	1Set	Bidirectional transmission. Dual motor, can transport coconut juice during juice extraction. After juice extraction, the coconut shell is transmitted back through the lower conveyor belt, which can adjust speed and bear a weight of 200 kilograms.
STORAGE TANK	2Sets	Made of 304 stainless steel, with a plate thickness of 4mm, capable of withstanding positive and negative pressure, 0.35MPa, with a manhole for cleaning, and an outer 10mm insulation.
Heating and cleaning tank	1Set	1000 liters, electric heating cleaning tank, made of 304 stainless steel, with a plate thickness of 4mm.
Cooling Tank	1Set	Compressor refrigeration unit, made of 304 stainless steel.
Also included		In addition, a PLC is used to control one filling machine, a sanitary pump, a cold and heat exchanger, a microporous filter, several connecting pipes and valves, installation drawings, and other auxiliary components.
