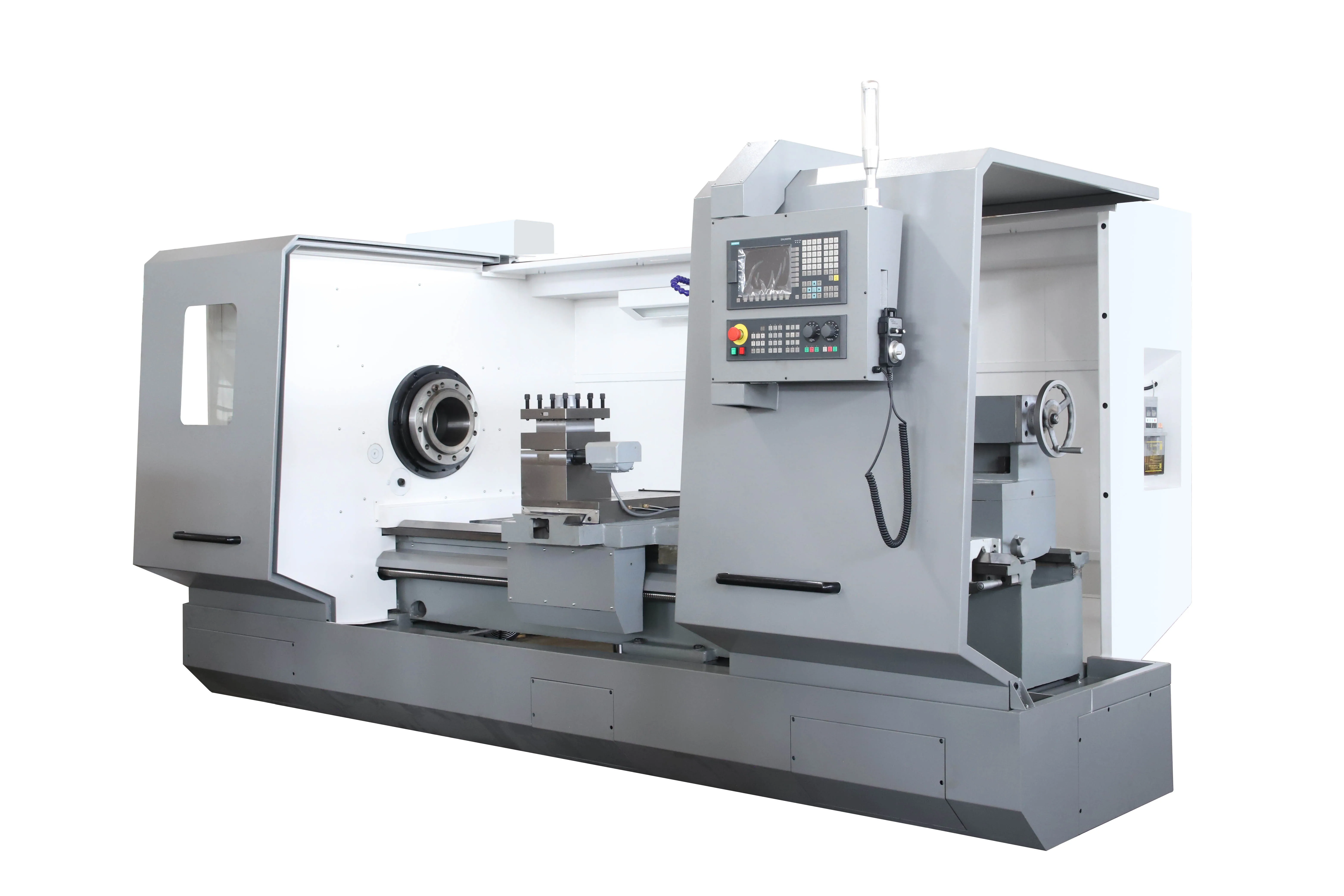

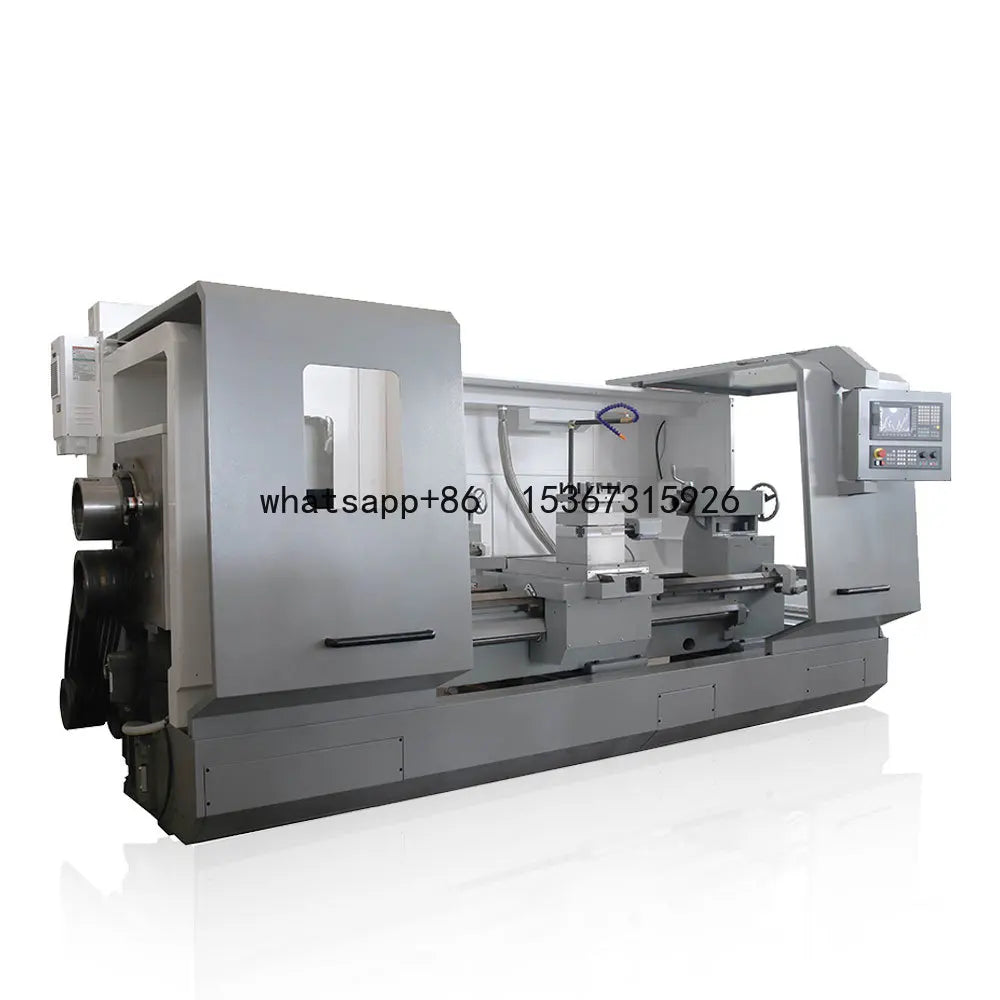

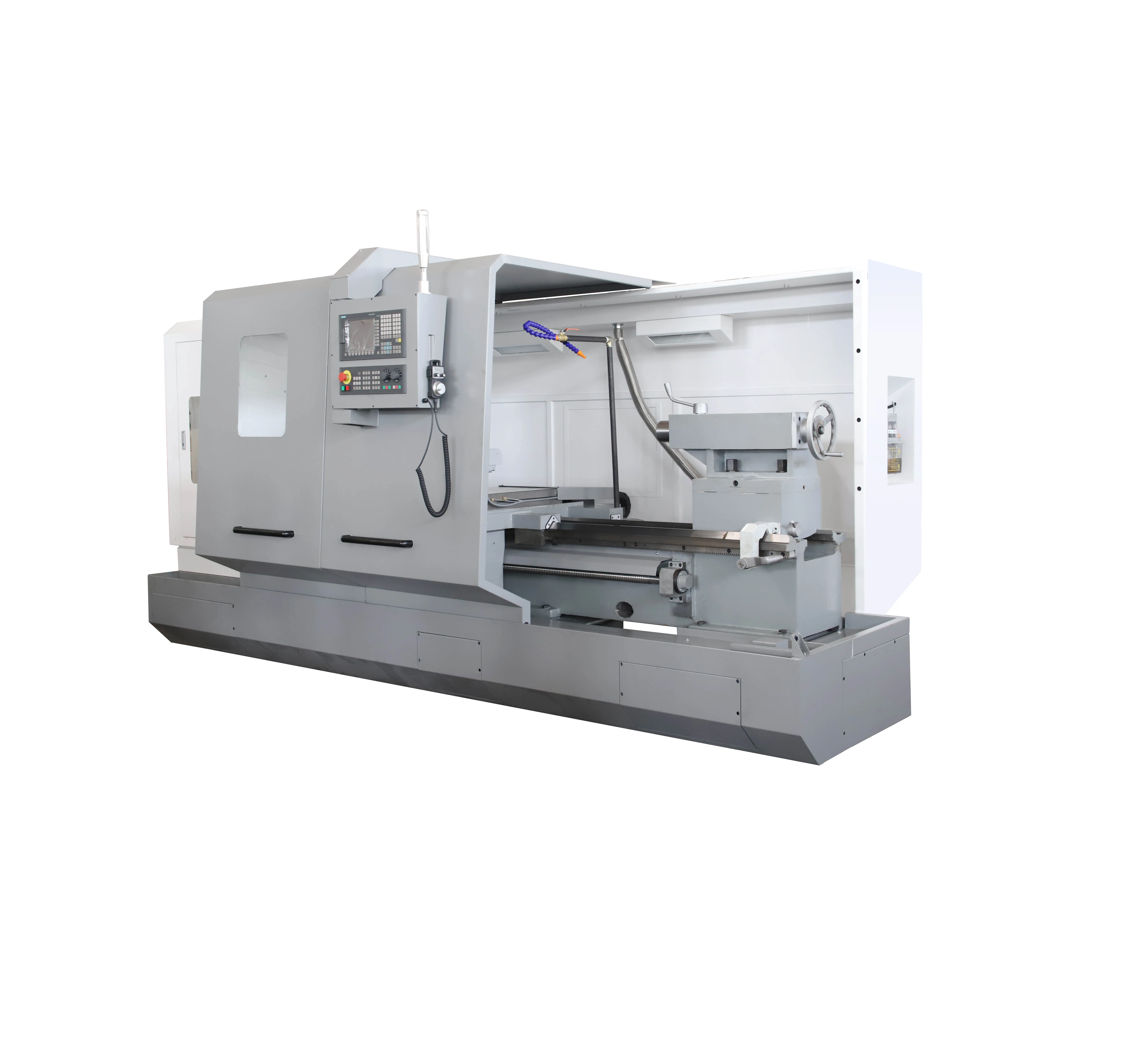

200 high precision cnc lathe machine

R 2,602,506.17 ZAR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Since all of our machines belong to the category of machinery, electrical appliances, medical devices, they are customized products, including customized voltage, customized plug, customized technical parameters. We do not support refunds without reason after starting production or receiving the goods (if there is no quality problem), otherwise it will cause heavy losses to our company and affect the secondary sales; About website prices: The most basic configuration of the products we display on AliExpress, many products need to be customized configuration, and consider shipping options, so not all prices on our website include free shipping. Please contact us before purchasing to get an official quote on the final price. Our machines are too big and heavy to be transported by air. We'll have to go by sea. However, AliExpress only accepts air freight by mail order. About Transportation: CFR (Cost and Freight) is a common trade term used in international trade. Under CFR, the seller is responsible for loading the goods on board or other means of transport and paying the freight required to transport the goods to the named port of destination. However, the risk of the goods in transit shall pass from the seller to the buyer when the goods are loaded on board at the port of loading. Therefore, the prices on the website are based on trade terms CFR, including sea freight from the port of China to the port of destination of the seller; The shipping agent will inform the buyer in advance when the goods arrive at the buyer's port of destination. As the buyer, you need to pay some destination port fees and customs fees to clear customs and pick up the goods by yourself; About tracking information: If you choose to ship to the port by sea, we usually send you the bill of lading, commercial invoice and packing list by default after delivery; If your country requires special customs clearance documents, please inform us in advance so that we can prepare them for you in advance; For Russian customers, we will ship your machine via Russian lines such as CDEK. So you don't have to pay customs fees If you have any questions (pre-sales/after-sales), please contact me in time, I will serve you 24 hours WhatsApp + 8618966023528 mailbox:AutomobileAccessory163@outlook.com

FEATURES AT A GLANCE

Product Features

1. Longitudinal and cross feeds are effected by servo motors driven by ball screws.

2. Centralized lubrication system in headstock for less heating and heat distortion.

3. Supersonic frequency hardened guide ways ensure high precision and long service life.

PRODUCT SPECIFICATIONS

Item	CKG200/1500	CKG200/2000	CKG200/3000
Max.swing over bed	Ø900 mm	Ø900 mm	Ø900 mm
Max swing over carriage	Ø550 mm	Ø550 mm	Ø550 mm
Bed width	560 mm	560 mm	560 mm
Max. length of workpiece(two centers)	1500 mm	2000mm	3000 mm
Max. turning length	1350mm	1790mm	2800mm
Processing pipe diameter	Ø50~ Ø200mm	Ø50~ Ø200mm	Ø50~ Ø200mm
Spindle nose	A2-15	A2-15	A2-15

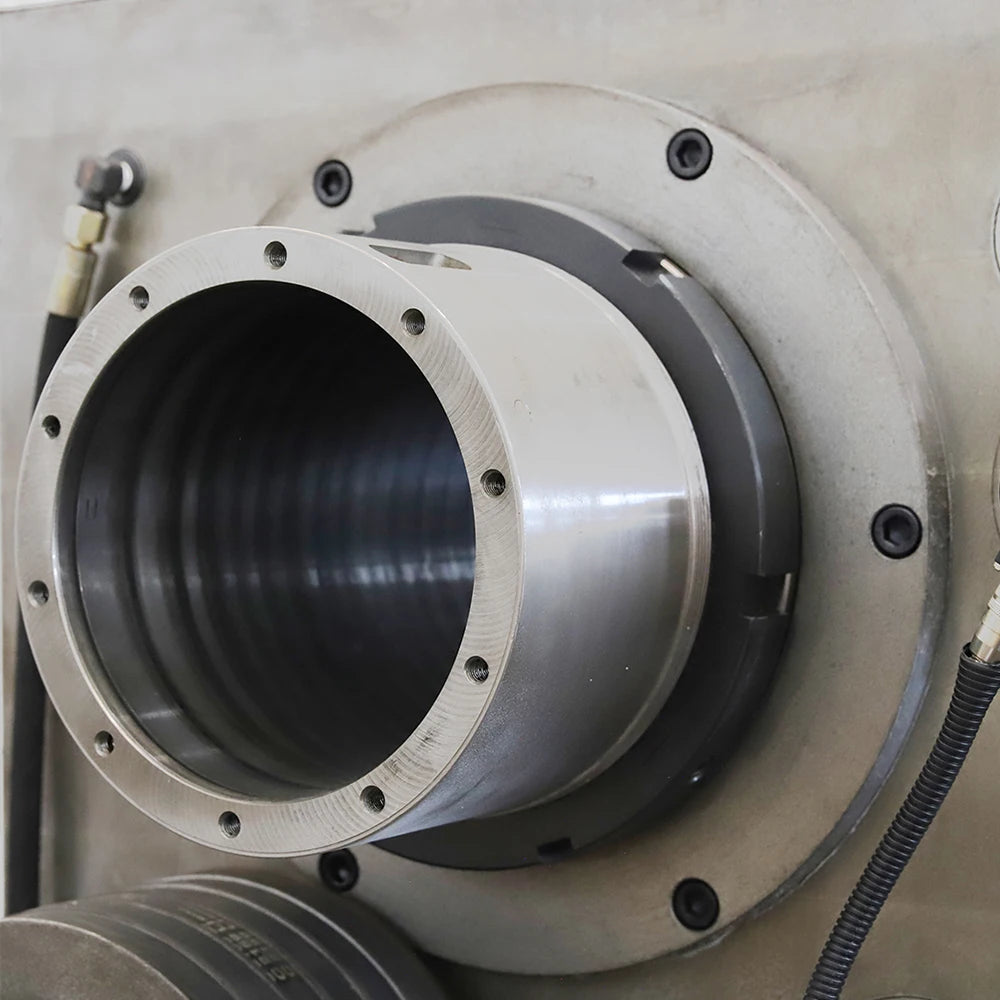

Spindle bore	Ø210 mm	Ø210 mm	Ø210 mm
Spindle bore taper	1:20	1:20	1:20
Steps of spindle speed	4 gears(stepless in each)
Range of spindle speed	10~60,20~115 ,35~205,65~380 r/min			10~60,20~115 ,35~205,65~380 r/min	10~60,20~115 ,35~205,65~380 r/min
X,Z axis rapid feed	5/10m/min
X,Z axis Max. travel	500 / 1350mm	500 / 1780mm	500 / 2800 mm
Min. input unit	0.001 mm	0.001 mm	0.001 mm
Tool post stations	4-stations
Tool cross section	40×40 mm	40×40 mm	40×40 mm

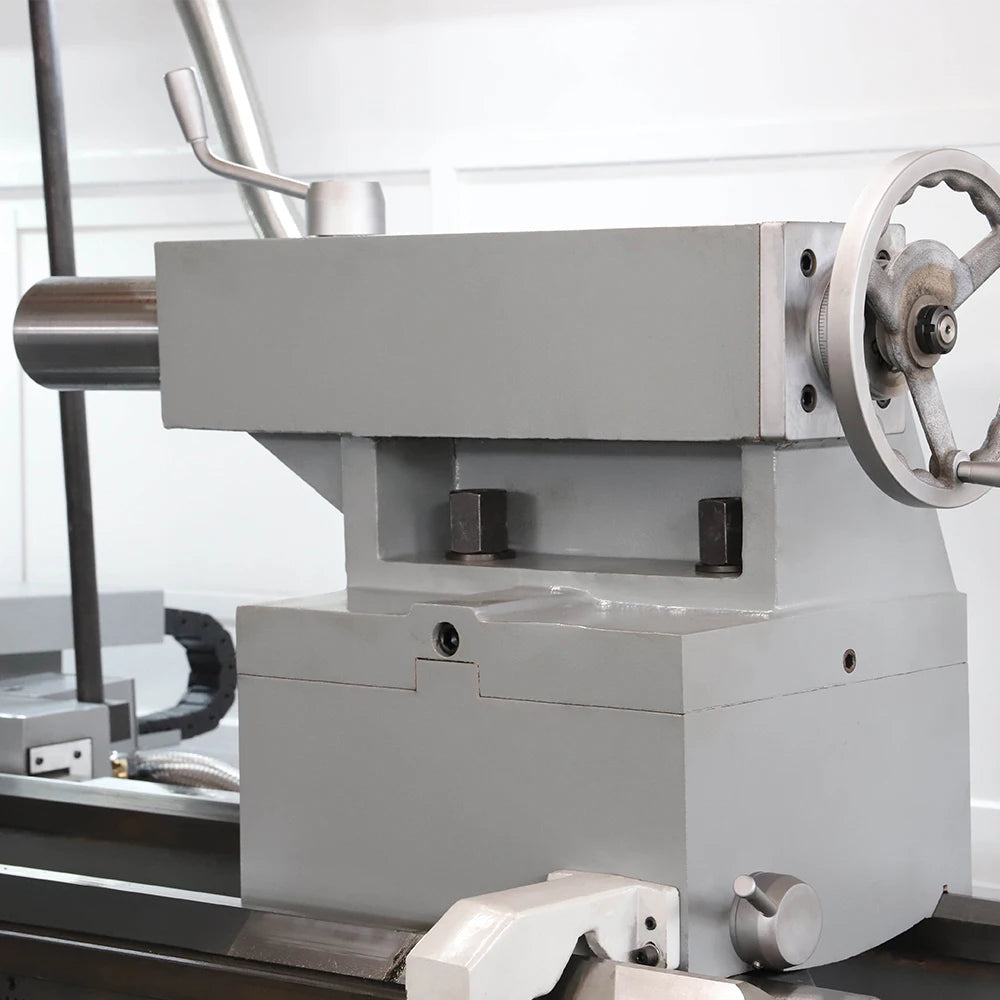

External diameter of tailstock sleeve	Ø100 mm	Ø100 mm	Ø100 mm
Bore taper of tailstock sleeve	M.T.NO.6	M.T.NO.6	M.T.NO.6
Max. travel of tailstock sleeve	230 mm	230 mm	230 mm
Spindle motor powder	18.5 KW	18.5 KW	18.5 KW
Max. workpiece weight	3000 kg	3000 kg	3000 kg
Cooling pump motor power	370 W	370 W	370 W
Machine tool dimensions (length x width x height)	4000x1900x1860 mm	4500x1900x1860 mm	5500x1900x1860 mm
Machine weight	around 5500 kg	around 6000 kg	around 6800 kg
