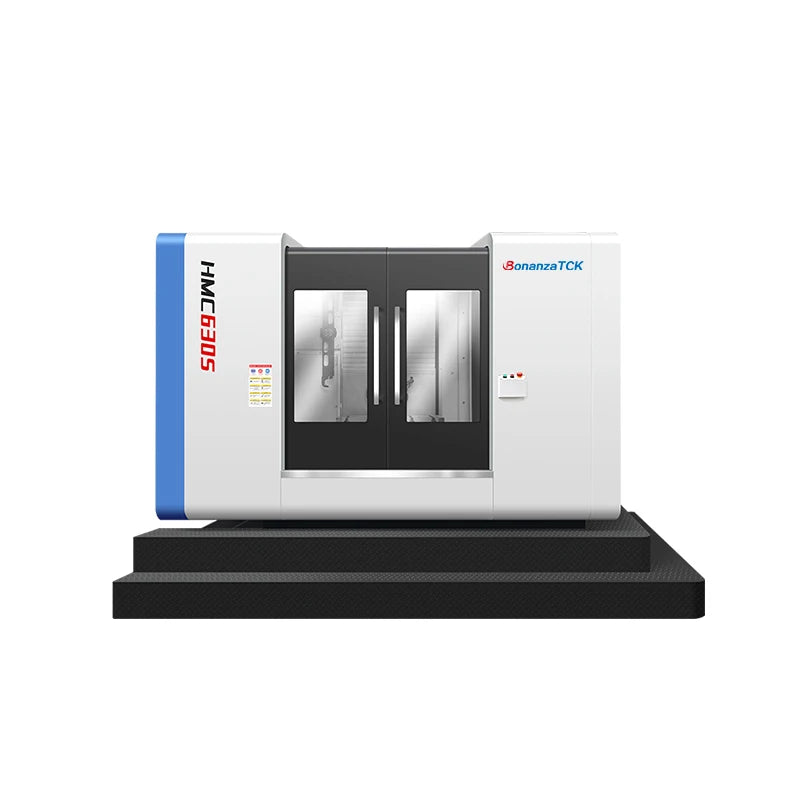

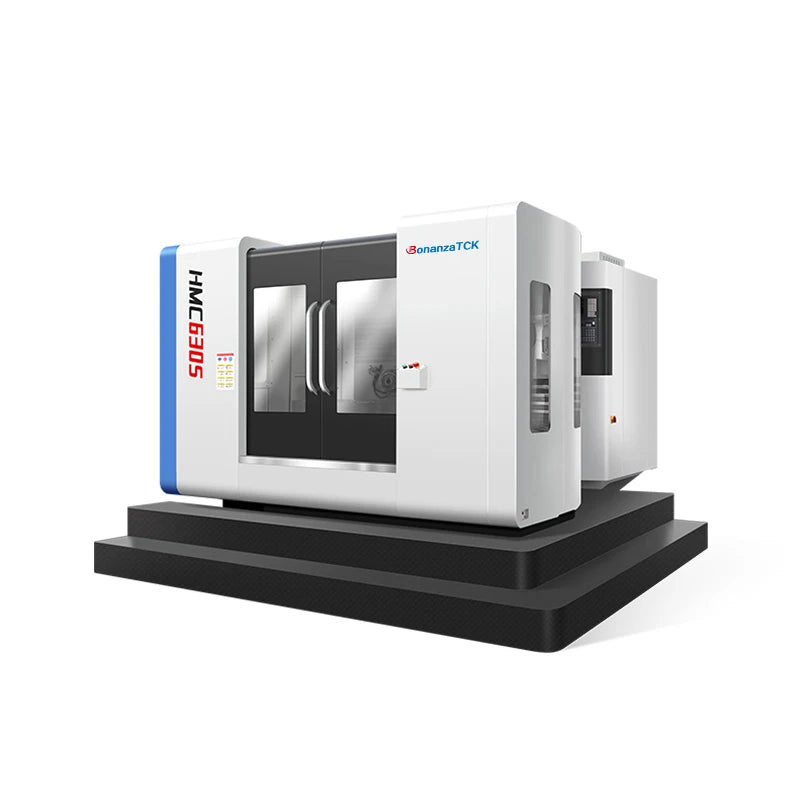

Industrial Grade HMC630S Horizontal Center With 5 Axis CNC Hining For High Precision Tas
Industrial Grade HMC630S Horizontal Center With 5 Axis CNC Hining For High Precision Tas
No se pudo cargar la disponibilidad de retiro
|
Name |
Specifications |
Unit |
||
|
|
HMC630S |
|
||
|
Workbench |
630*630/ 800*800 |
mm |
||
|
|
Maximum allowable load |
1200 |
kg |
|
|
|
5-18-100/ 7-18-100 |
mm |
||
|
Processing range |
Maximum left and right travel - X-axis |
1050 |
mm |
|
|
|
Maximum up and down travel - Y-axis |
800 |
mm |
|
|
|
Maximum front and back travel - Z-axis |
850 |
mm |
|
|
|
Distance from spindle end face to workbench center |
230-1080 |
mm |
|
|
|
|
|
mm |
|
|
|
145-945/140-940 |
mm |
||
|
Spindle |
Taper hole (7:24) |
BT 50 φ190 |
|
|
|
|
6000 |
r/min |
||
|
|
Spindle motor power |
22 |
kW |
|
|
Rapid movement |
18 |
m/min |
||
|
|
|
15 |
|
|
|
|
|
Z-axis |
15 |
|
|
|
Feed speed |
1-10000 |
mm/min |
|
|
Tool magazine |
Tool magazine form |
Disc type |
|
|
|
|
Tool magazine capacity |
24 |
|
|
|
|
Tool change time |
2.5 |
s |
|
|
Positioning accuracy |
JISB6336-4:2000/ GB/T18400.4-2010 |
|
||
|
|
X/Y/Z-axis |
0.008 |
mm |
|
|
X/Y/Z-axis repeat positioning accuracy |
0.005 |
mm |
||
|
Dimensions (length x width x height) |
4100×3000×2550 |
mm |
||
|
10000 |
kg |
|||
1:How can I choose the most suitable machines ?
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
